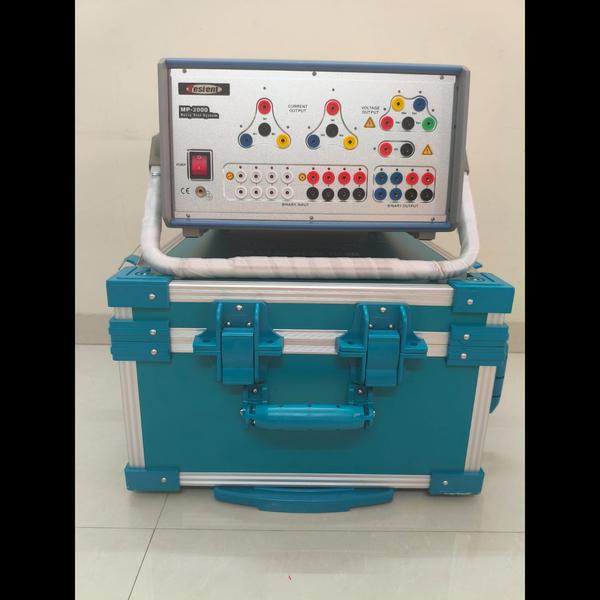

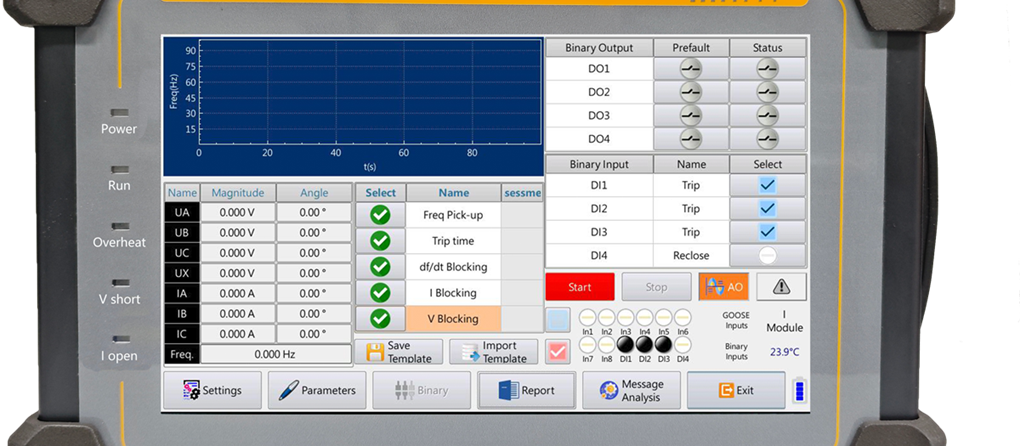

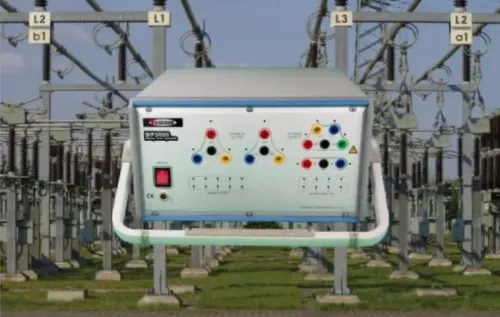

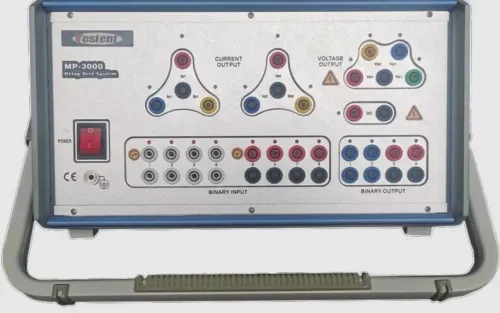

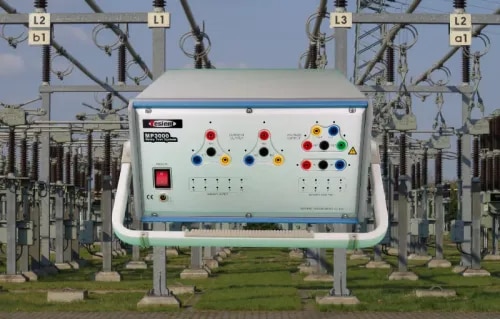

IEC 61850 Relay Test Set – Six-Phase, All-in-One Relay Test System (MP3000F) – Price & Supplier in India Need one relay test set that can test both conventional relays and IEC 61850 digital protection? The all-in-one relay test system for this job has six current outputs and four voltage outputs for analog testing, plus GOOSE and Sampled Values testing for digital substations, in a single portable unit. Myriad Industrial Solutions LLP, Mumbai, supplies the Tesient MP3000F, a relay test set built for exactly this requirement. Send your relay list and application to get a configured price quotation. What to look for in an IEC 61850 relay test set - Enough current and voltage channels (six currents, four voltages) for three-phase and multi-phase protection testing - Analog outputs for conventional relays and IEC 61850 digital testing in the same set, so you do not carry two instruments - GOOSE simulation and subscription, and Sampled Value publishing - Accuracy and output power that match the relays you test - GPS or IRIG-B time synchronisation for end-to-end testing - Automated PC-controlled testing, and a weight you can carry between substations The MP3000F covers each of these. IEC 61850 relay testing: GOOSE and Sampled Values The MP3000F tests IEC 61850-compliant digital protection devices and systems. It can simulate and subscribe to GOOSE messages and publish Sampled Values, with FT3 protocol support. It also tests conventional relays through analog voltage and current outputs, so one set covers substations with both conventional and digital protection. MP3000F technical specifications Voltage: 4 x 300 V / 100 VA, accuracy error < 0.1% rd. + 0.01% rg. typ., continuous output Current: 6 x 30 A / 450 VA, accuracy error < 0.1% rd. + 0.02% rg. typ., output time > 15 s at 30 A Frequency: DC, 0.001 Hz to 1000 Hz, accuracy +/-1 ppm, resolution 0.001 Hz Low-level analog outputs: 12 Binary inputs / outputs: 8 / 4 Auxiliary DC supply: 24 to 300 V Time synchronisation (optional): GPS, IRIG-B IEC 61850: GOOSE simulation/subscription, Sampled Value publishing, FT3 protocol Weight: 16.5 kg Also features high power and high accuracy, a modular plug-in structure and fully automated testing with PC control software. IEC 61850 relay test set price in India: how to get a quotation Price depends on configuration (including optional GPS/IRIG-B time synchronisation), taxes and delivery location. To receive a quotation, send us your relay types and makes, the number of current and voltage channels you need, whether you need IEC 61850 testing, and your delivery location. Comparing relay test sets? Send us your requirement Many utilities, EPC contractors and testing firms shortlist relay test sets such as OMICRON CMC 356, CMC 500 and KINGSINE K3063i alongside the Tesient MP3000F. Send your required current and VA per channel, number of channels and IEC 61850 features, and we will check them against the MP3000F published specifications. Frequently asked questions Q: What is the price of an IEC 61850 relay test set in India? A: Price depends on the model, configuration, taxes and delivery location. For the MP3000F, request a quotation from Myriad Industrial Solutions LLP, Mumbai, by WhatsApp or email. Q: Which relay test set can test both conventional and IEC 61850 relays? A: The MP3000F tests conventional relays through analog outputs and IEC 61850 devices through GOOSE and Sampled Values in one set. Q: Can the MP3000F test IEC 61850 relays? A: Yes. As per the manufacturer, it simulates and subscribes to GOOSE messages, publishes Sampled Values and supports FT3. Q: How many outputs does the MP3000F have? A: Six current outputs (30 A), four voltage outputs (300 V) and 12 low-level analog outputs. Q: Can I get a quote for a CMC 356, CMC 500 or K3063i alternative with IEC 61850 testing? A: Send your requirement and we will check it against the MP3000F specifications. Request IEC 61850 relay test set price and availability WhatsApp: +91 84549 40731 | Email: myriadisllp@gmail.com | Mumbai, India

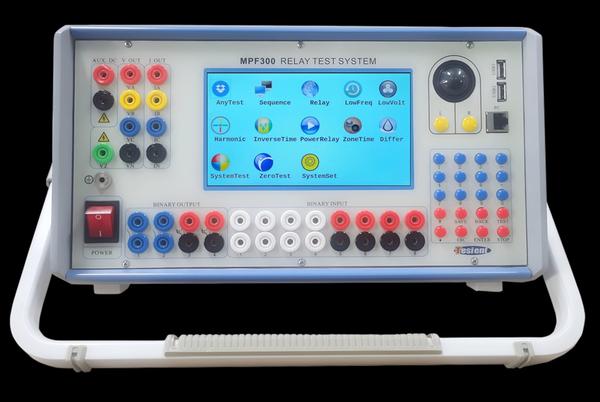

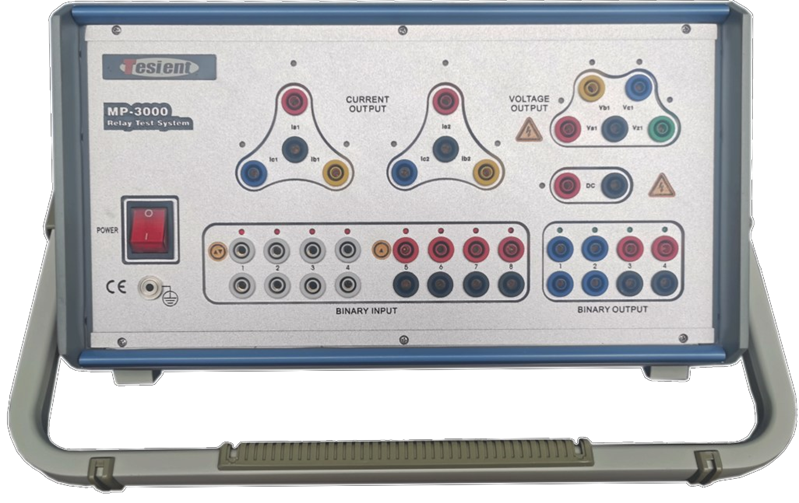

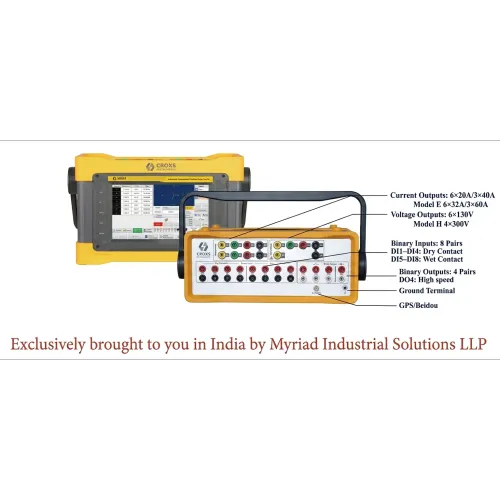

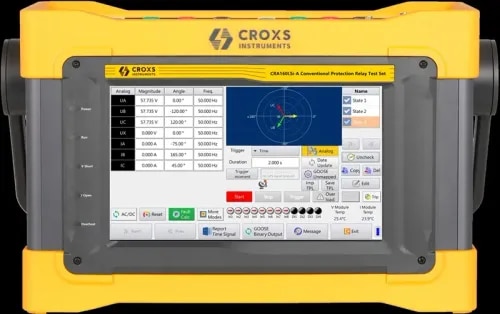

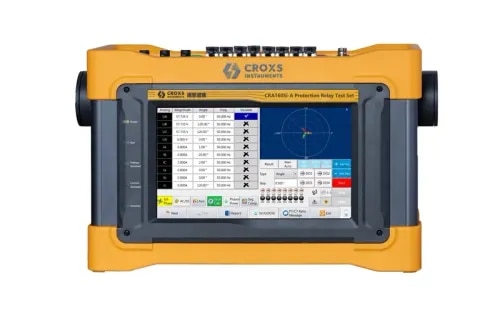

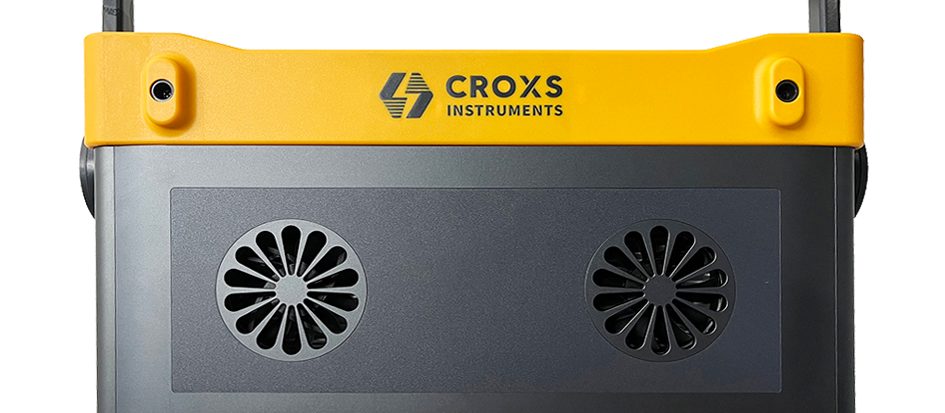

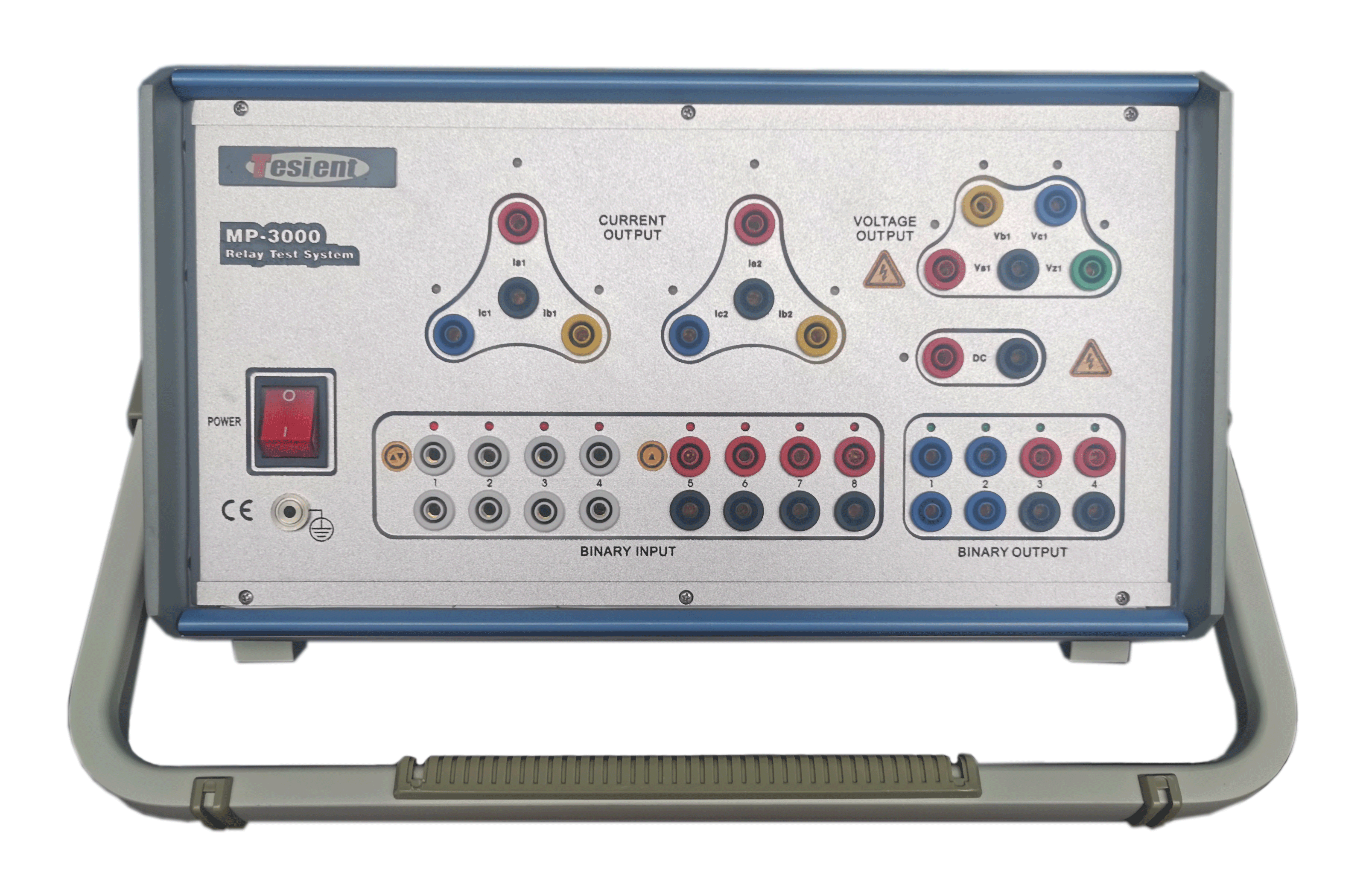

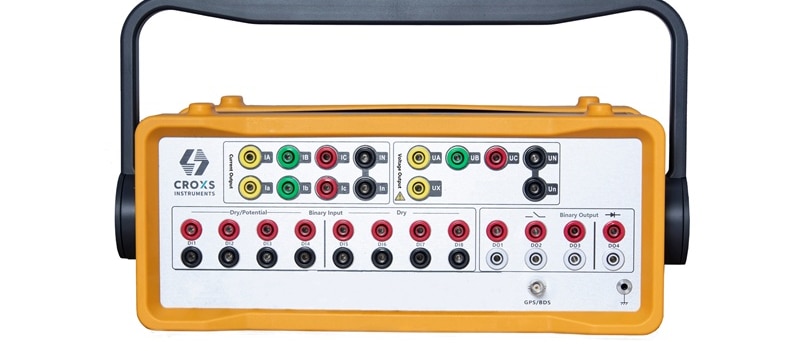

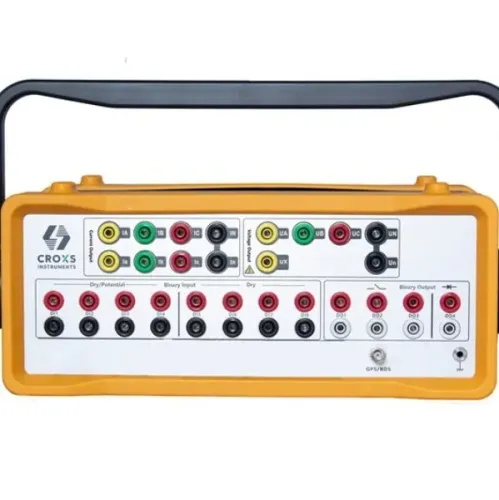

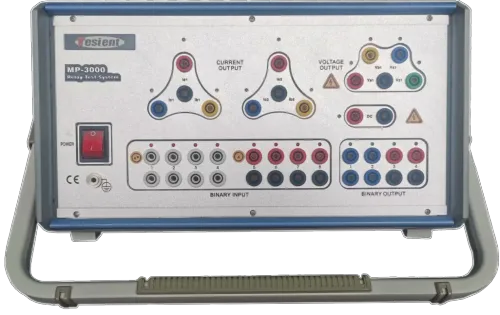

Myriad Industrial Solutions LLP offers professional-grade protection relay test systems engineered for electrical substation commissioning, industrial maintenance, and relay testing across India. As an authorized direct distributor, we provide high-tech alternatives to expensive legacy international platforms, delivering localized support, calibration compliance, and domestic procurement advantages. Our product lineup is split into two specialized engineering categories to match your technical requirements: the high-power TESIENT MP3000 Series and the ultra-high accuracy CROXS Platform. 1. TESIENT MP3000 Series (Models: MP3000A, MP3000F, MP3000A1) The TESIENT series serves as a high-power workhorse testing system designed to deliver high Volt-Ampere (VA) output capacity. This makes it suitable for testing legacy, high-burden electromechanical relays, directional overcurrent, distance, and heavy-duty current injection schemes where raw power delivery is required. - Hardware Features: Standard configurations provide up to 6 independent current sources (maximum 30A per channel) and 4 independent voltage sources (maximum 300V per channel). - Amplifier Design: Built using high-fidelity linear amplifiers to isolate testing channels and completely bypass standard harmonic noise injection. - Transient Simulation: Capable of generating transient fault signals up to 5 kHz for dynamic protective testing. - Digital Integration: Built-in capabilities support automated protection relay testing architectures and native IEC 61850 substation testing functions. 2. CROXS Advanced Testing Platform The CROXS platform is engineered as an ultra-high-precision asset for modern numerical testing environments. While it features a lower VA power capacity compared to the TESIENT series, it delivers superior measurement and injection accuracy. - Application: Optimized for testing highly sensitive numerical relays, multi-function microprocessor protection schemes, precision metering verification, and advanced digital substations. - Digital Substation Excellence: Native handling of IEC 61850 GOOSE messaging, Sampled Values (SV), and process/station bus validation parameters. - Accuracy Tier: High-precision signal generation ensures exact validation of trip curves and fine-grained protection thresholds without distortion. Software Workflow and XRIO Compatibility: Both the TESIENT and CROXS platforms natively support direct XRIO file imports. In the global protective relay testing market, raw XRIO files act as structured parameter text documents containing specific relay setting points. Note that no software on the market maps a raw XRIO file into a graphical trip curve automatically without an underlying model template. Our systems execute this industrial workflow smoothly. By utilizing pre-configured relay model templates matching major international manufacturers, engineers can import a standard XRIO file to automatically populate all settings, parameters, and fields. The underlying software then reads these data points to plot coordinates, map multi-section coordinated curves, and reconstruct exact multi-phase relay characteristics (such as overcurrent, differential, or Z-plane impedance trajectories). Commercial and Procurement Advantages for Indian Industries: Purchasing high-ticket test sets through third-party directory aggregators often clusters advanced technology with basic manual injection boxes. Buying directly from Myriad Industrial Solutions LLP ensures direct technical alignment with your project specification criteria. - Complete regulatory transparency as an official importer and distributor. - Localized physical calibration services matching national compliance metrics. - Direct GST-compliant commercial invoicing. - Accessible on-site technical field support and rapid domestic shipping across industrial zones. For formal technical documentation, catalog files, compliance certifications, or to request an official commercial quote (RFQ) tailored to your testing criteria, contact Myriad Industrial Solutions LLP directly through our verified channels.

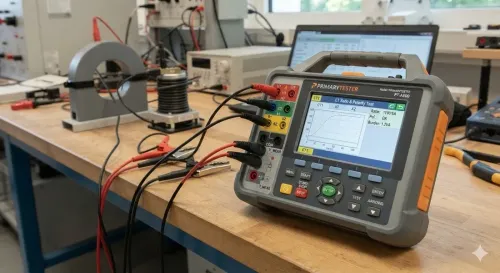

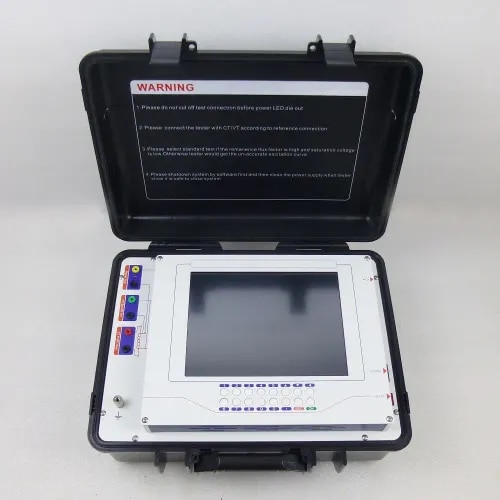

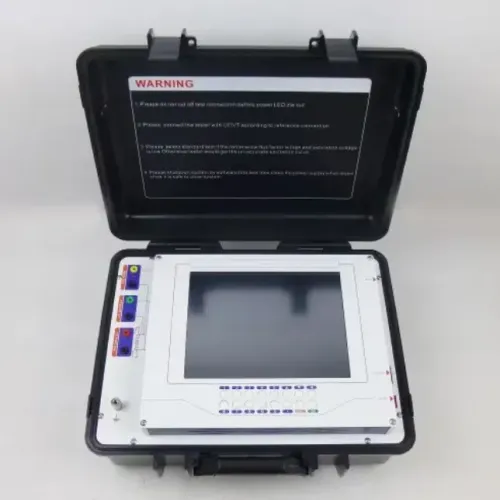

Fully automatic CT PT analyzer for on-site and lab testing of current transformers (CT) and voltage/potential transformers (VT/PT). A single test sequence measures ratio error, phase error, polarity, excitation curve and knee-point voltage, winding resistance, and secondary burden—then auto-evaluates against your selected standard and generates a test report on the spot. Key specifications - Ratio error: typical <0.02%, guaranteed <0.1% (CT ratio 1–35,000; PT ratio 1–30,000) - Phase error accuracy < 2 min, resolution 0.01 min - Output 0.1–160V AC / 0.001–5A (15A peak); extendable to 4kV AC with optional voltage booster - Knee-point voltage measurement up to 45 kV - Winding resistance 0–10 kΩ, auto-ranging - Compliant with IEC 60044-1/-2/-5/-6, IEC 61869, IEEE C57.13 - 12.1" industrial touchscreen—standard tests run without a laptop - Stores 30,000+ test records; Ethernet remote control - Weight <15 kg Optional accessories: 5-tap multi-tap switch box for multi-core/three-phase CTs, 4 kV voltage booster for high-accuracy VT/CVT ratio testing, and external current booster for secondary injection. Suited to protection testing labs, DISCOM, TRANSCOM, testing wings, T&C agencies, and substation commissioning teams.
